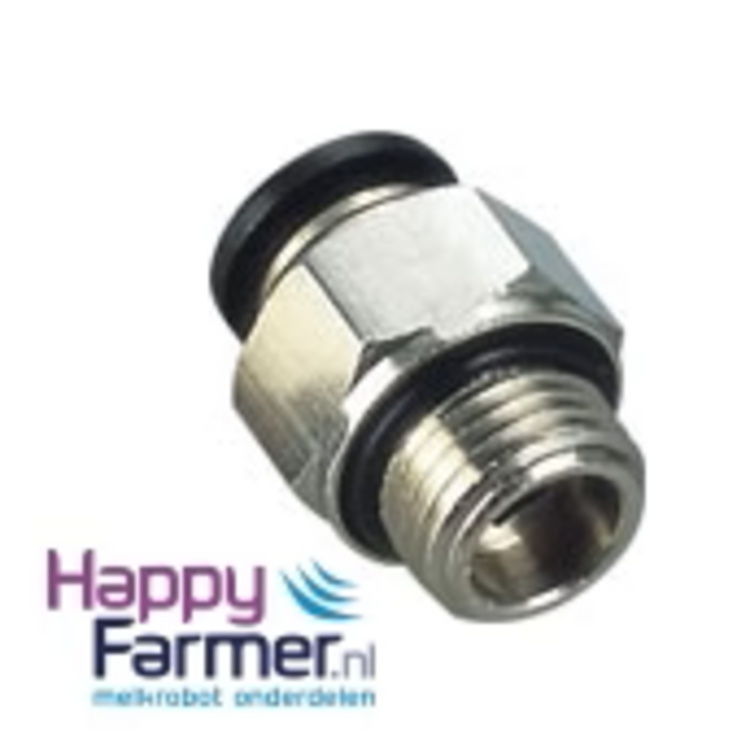

Straight Male Threaded Coupling (6mm Push-In) with O-Ring
Industrial Grade Pneumatic Fitting
Ensure a precise, leak-proof connection in your robotic milking system with the 6mm Straight Male Threaded Push-In Coupling. Designed for the rigorous demands of a 24/7 dairy environment, this fitting features an integrated O-ring seal on the threaded base, eliminating the need for Teflon tape and ensuring a perfect, airtight seat every time.
Pneumatic leaks in 6mm lines are a primary cause of sluggish performance in arm movements and gate cylinders. This industrial-grade coupling provides a secure, vibration-resistant connection for 6mm air lines, which are the standard for most Lely Astronaut and DeLaval pneumatic control systems.
Features & Benefits
- Instant O-Ring Seal: The pre-installed O-ring ensures a high-pressure seal against the manifold face, reducing installation time and preventing air loss at the thread.
- 6mm "Push-to-Connect": Features a high-tensile stainless steel grabbing ring that secures 6mm pneumatic tubing firmly while allowing for quick, tool-free disconnection.
- Corrosion Resistant: Built from nickel-plated brass and impact-resistant polymers to withstand the humidity, ammonia, and temperature fluctuations of a robotic barn.
- High-Cycle Durability: Engineered to maintain a reliable seal even on high-motion components that cycle thousands of times per day.
- Vibration Resistant: Designed to stay secure in environments with constant mechanical movement, such as those inside the robotic arm or control cabinet.
Product Specifications
|
Feature
|
Details
|
|
Component Type
|
Straight Male Threaded Coupling
|
|
Tubing Connection
|
6mm Push-In
|
|
Sealing Method
|
Integrated O-Ring
|
|
Material
|
Nickel-Plated Brass / Polymer
|
|
Operating Pressure
|
-0.95 to 14 bar
|
|
Compatibility
|
Universal (Commonly used on Lely, DeLaval, and GEA systems)
|
Technical Tip
When installing 6mm push-in fittings, precision is key. Because 6mm tubing is the "workhorse" size for most robot functions, a small leak here can lead to significant air loss over time. Always ensure your 6mm air line is cut perfectly square using a dedicated tube cutter. If you are troubleshooting a "ghost" air leak that you can hear but not see, check these threaded connections—a worn O-ring or a scratched tube end is a common culprit.
