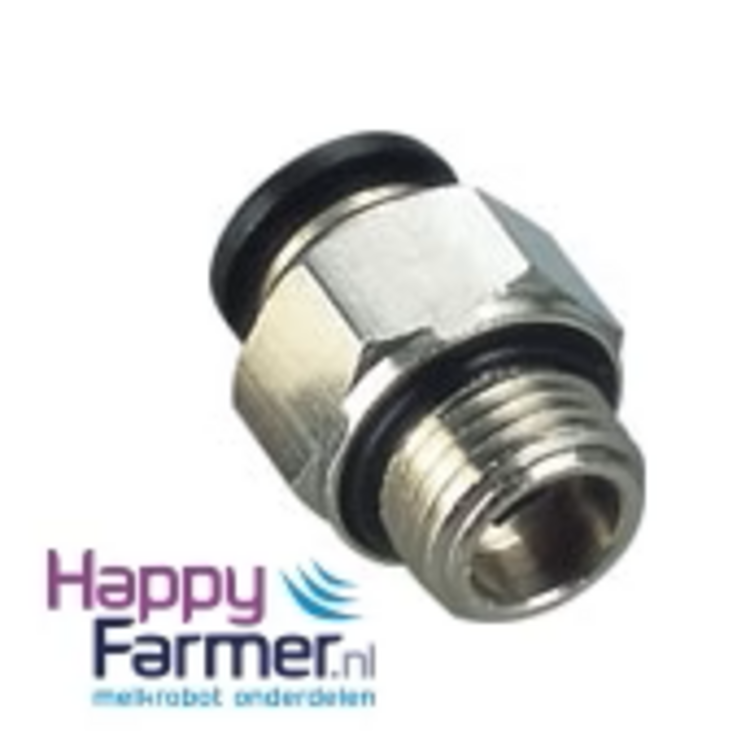

Straight Male Threaded Coupling (10mm Push-In) with O-Ring
Industrial Grade Pneumatic Fitting
Ensure a leak-proof, high-pressure connection in your robotic milking system with the 10mm Straight Male Threaded Push-In Coupling. Designed for the rigorous demands of a 24/7 dairy environment, this fitting features an integrated O-ring seal on the threaded base, eliminating the need for Teflon tape and ensuring a perfect, airtight seat every time.
Pneumatic leaks are a primary cause of "sluggish" robot arm movements and gate timing errors. This industrial-grade coupling provides a secure, vibration-resistant connection for 10mm air lines, commonly found in the main air supply lines and high-flow manifolds of Lely Astronaut and DeLaval systems.
Features & Benefits
- Instant O-Ring Seal: The pre-installed O-ring ensures a high-pressure seal against the manifold face, reducing installation time and preventing air loss at the thread.
- 10mm "Push-to-Connect": Features a high-tensile stainless steel grabbing ring that secures 10mm pneumatic tubing firmly while allowing for quick, tool-free disconnection.
- High-Cycle Durability: Built from nickel-plated brass and impact-resistant polymers to withstand the humidity, temperature fluctuations, and vibrations of a robotic barn.
- High-Flow Design: The straight-through internal geometry ensures maximum CFM (Cubic Feet per Minute) delivery to your larger pneumatic cylinders and primary valve blocks.
- Vibration Resistant: Engineered to maintain a seal even on high-motion parts like the robotic arm or heavy entry/exit gates.
Product Specifications
|
Feature
|
Details
|
|
Component Type
|
Straight Male Threaded Coupling
|
|
Tubing Connection
|
10mm Push-In
|
|
Sealing Method
|
Integrated O-Ring
|
|
Material
|
Nickel-Plated Brass / Polymer
|
|
Operating Pressure
|
-0.95 to 14 bar
|
|
Compatibility
|
Universal (Commonly used on Lely, DeLaval, and GEA systems)
|
Technical Tip
When installing 10mm push-in fittings, always ensure your air line is cut perfectly square using a dedicated tube cutter. Because 10mm lines often carry higher air volumes, even a small leak due to an angled cut can significantly impact system efficiency. If you are troubleshooting a compressor that is cycling too frequently, check these threaded connections first—a worn O-ring is a common culprit for "silent" air loss in main supply lines.
