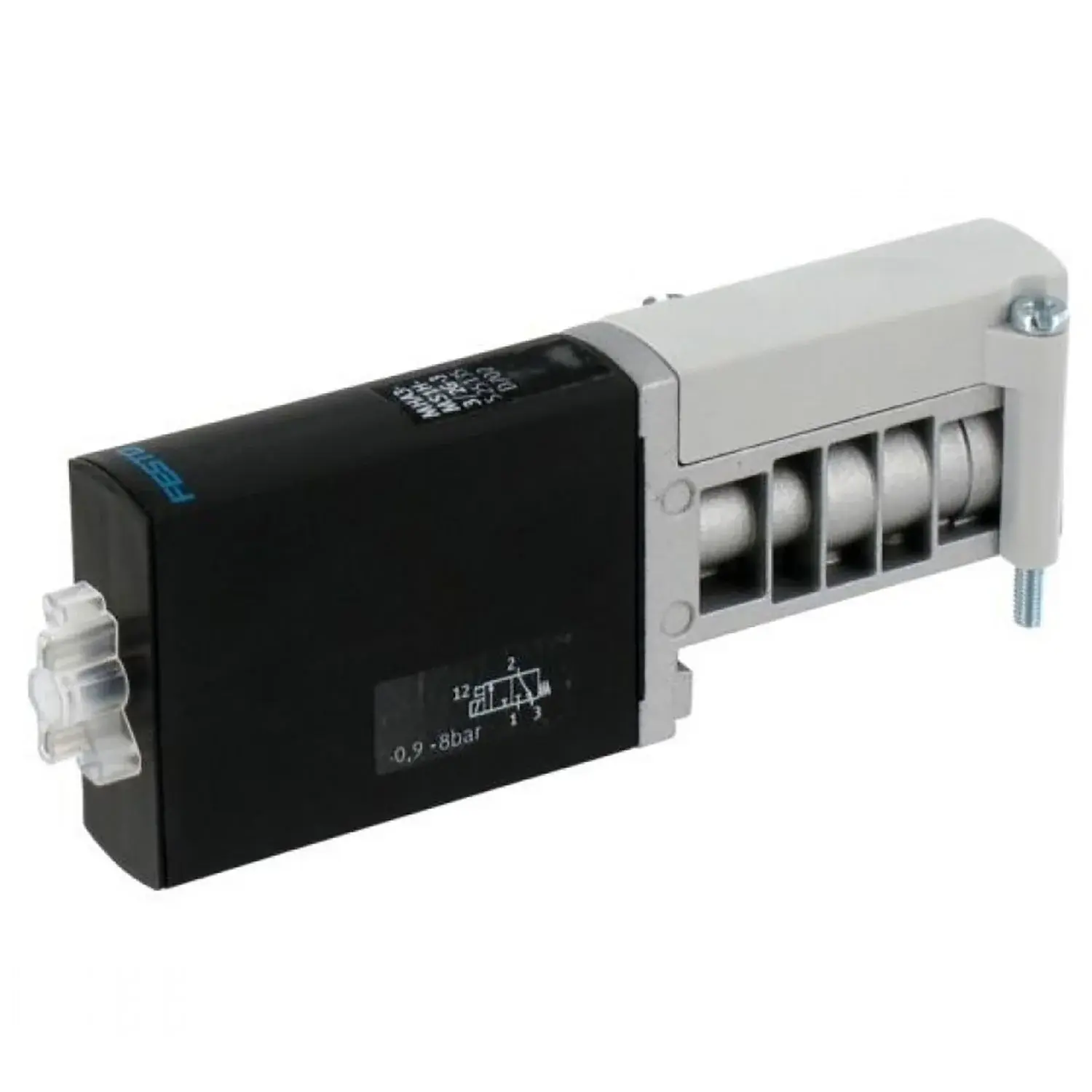

Festo Solenoid valve for arm Festo 525135

Festo Solenoid Valve for Lely Arm (525135)

The Festo 525135 is a high-speed pneumatic solenoid valve used extensively in the robotic arm of the Lely Astronaut A3 and A4. This valve is the "muscle" behind the arm's movement, translating electrical signals into the rapid pneumatic actions required to position the teat cups under the cow.

Product Identification & Compatibility

Technical Note: While the Lely-branded version may feature different stamped type numbers on the housing, the Festo 525135 is the exact mechanical and electrical equivalent and serves as a direct, "plug-and-play" replacement.

Key Features

• Optimized for Robotic Duty: Engineered for the high-frequency switching and millions of cycles required in a 24/7 robotic milking environment.
• Precision Response: Minimizes the "lag" between the Teat Detection System (TDS) command and the physical arm movement, ensuring faster attachment times.
• Industrial Build: Designed to resist the vibration, moisture, and temperature fluctuations common in the robot cabinet.

Critical Service Advice: "The Pair Rule"

For optimal performance and to avoid troubleshooting headaches, technicians strongly advise replacing both valves on a single cylinder simultaneously (crosswise).

• Why? Pneumatic cylinders operate on a balanced pressure differential. If one valve is new and the other is old/worn, the cylinder may move at inconsistent speeds, lead to "shuddering," or cause "Arm Movement Timeout" errors.
• Synchronization: Replacing them in pairs ensures that the extension and retraction speeds remain perfectly synchronized, extending the life of the cylinder seals.

Common Failure Symptoms

If you notice the following, this valve is likely the culprit:

1. Jerky Arm Movement: The arm "stutters" while moving toward the cow.
2. Slow Retraction: The arm takes too long to return to the parked position after milking.
3. Audible Air Leaks: A constant "hissing" sound coming from the valve manifold even when the arm is stationary.
