Duplo Tube Covers

Duplo Hose Covers – Updated Version

Enhanced Protection for Lely Robot Supply Lines

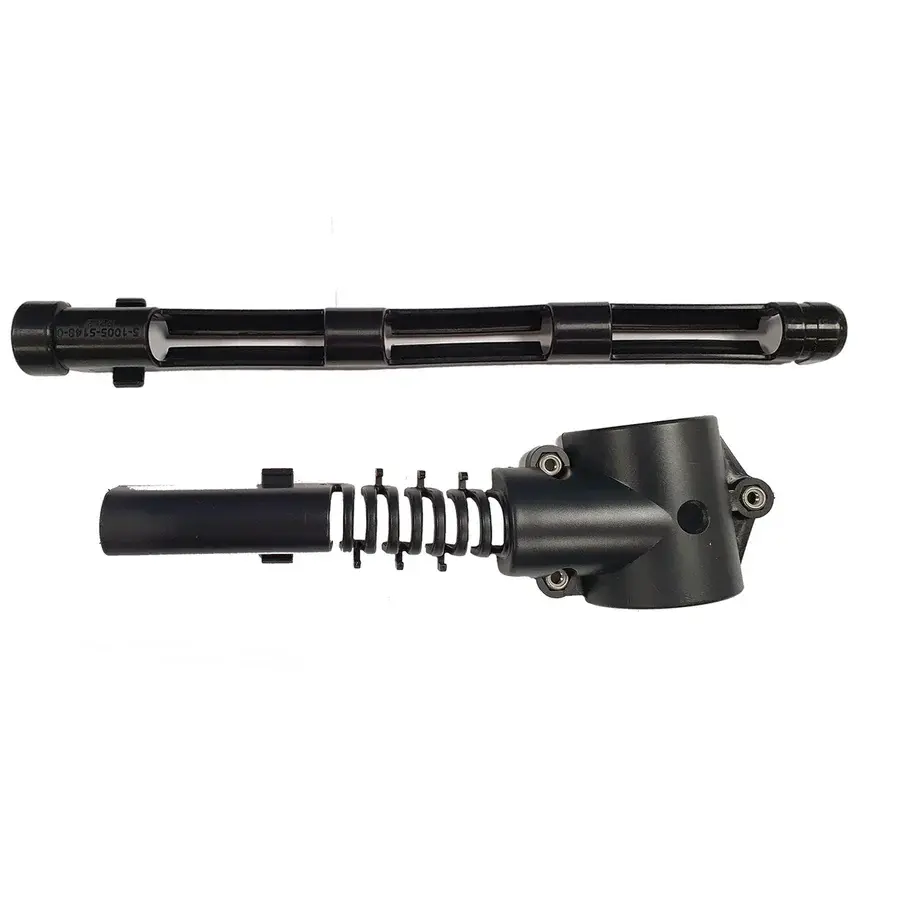

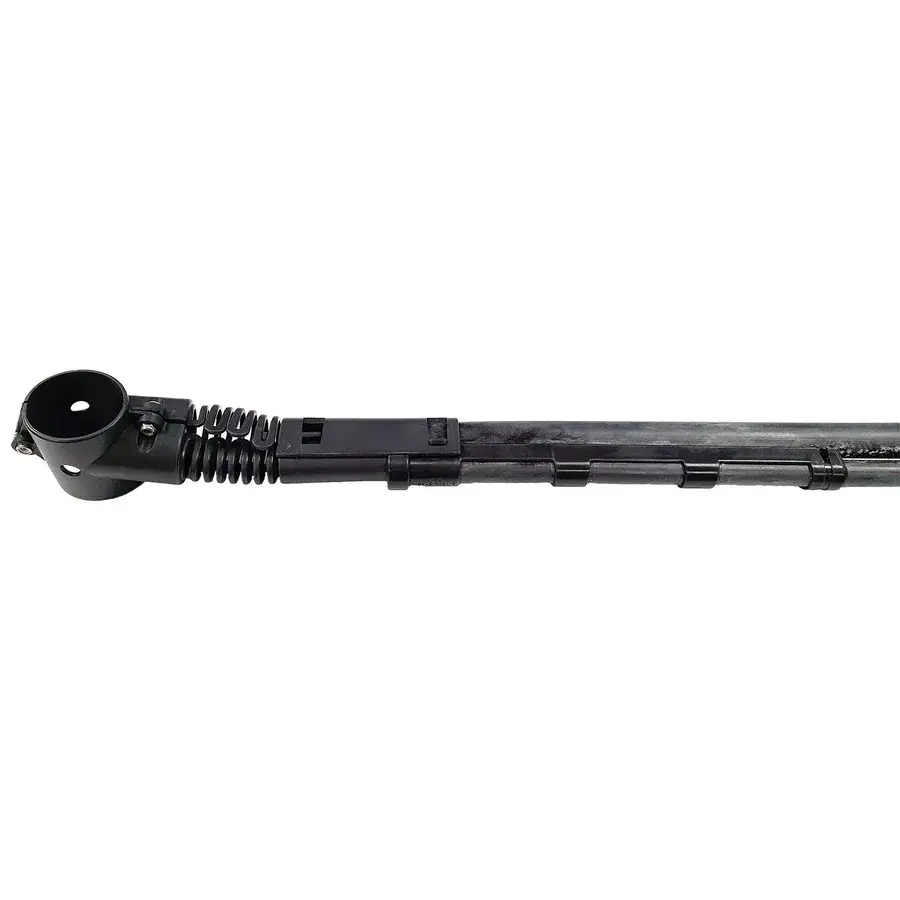

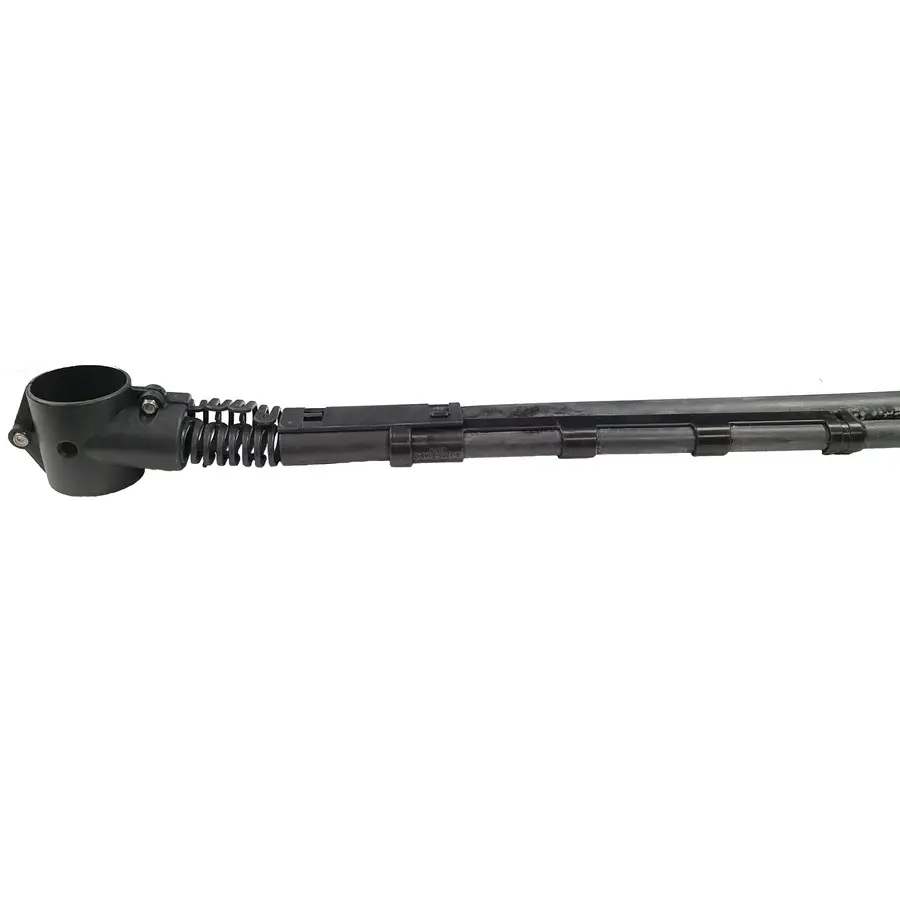

Our Duplo Hose Covers are essential for protecting the vacuum and milk transport lines on your robotic milking system. These covers prevent premature wear, kinks, and environmental damage to the "Duplo" (twin-line) hose assemblies.

This is the newly updated version from the supplier, engineered for a more secure fit and longer service life.

Product Specifications

• Part Numbers: Corresponds to Lely 5.1004.6153.0 and 5.9701.6153.0.
• Compatibility: Designed for Lely Astronaut robotic milking systems.

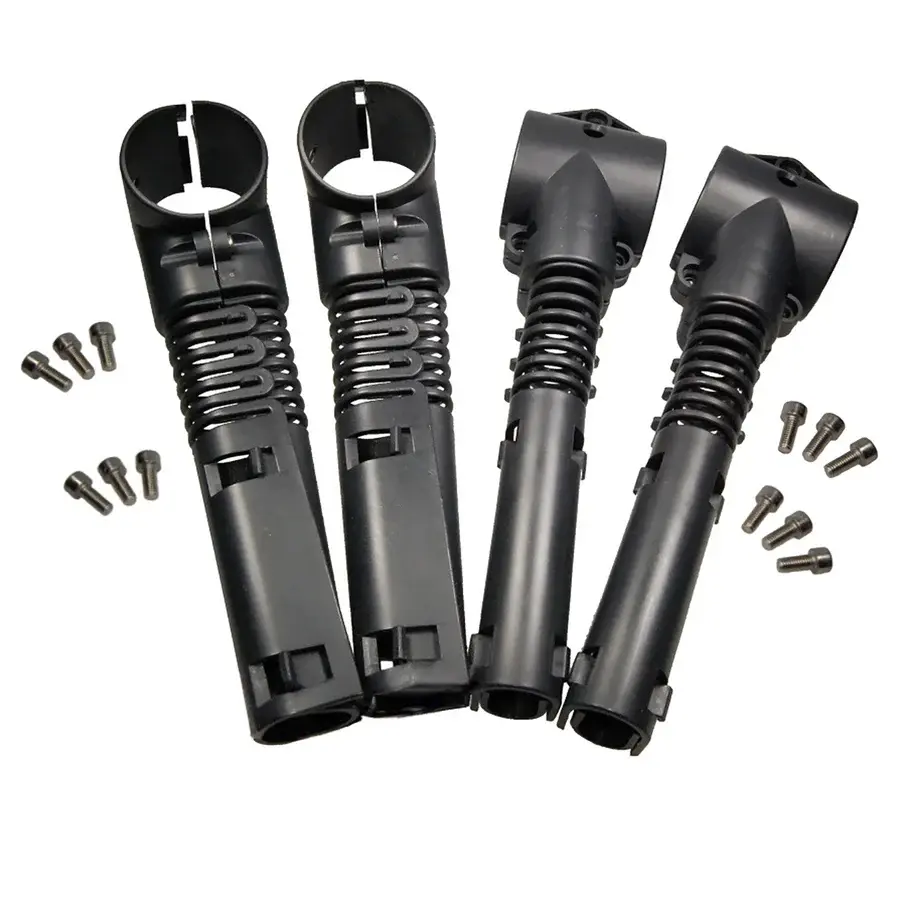

• Update Notice: This kit now includes two additional assembly components designed to reinforce the connection points.

Assembly Instructions

The updated design includes two extra parts for enhanced stability. To ensure a proper fit:

1. Identify the two new reinforcement clips included in the package.
2. Position them at the high-stress contact points of the Duplo line.

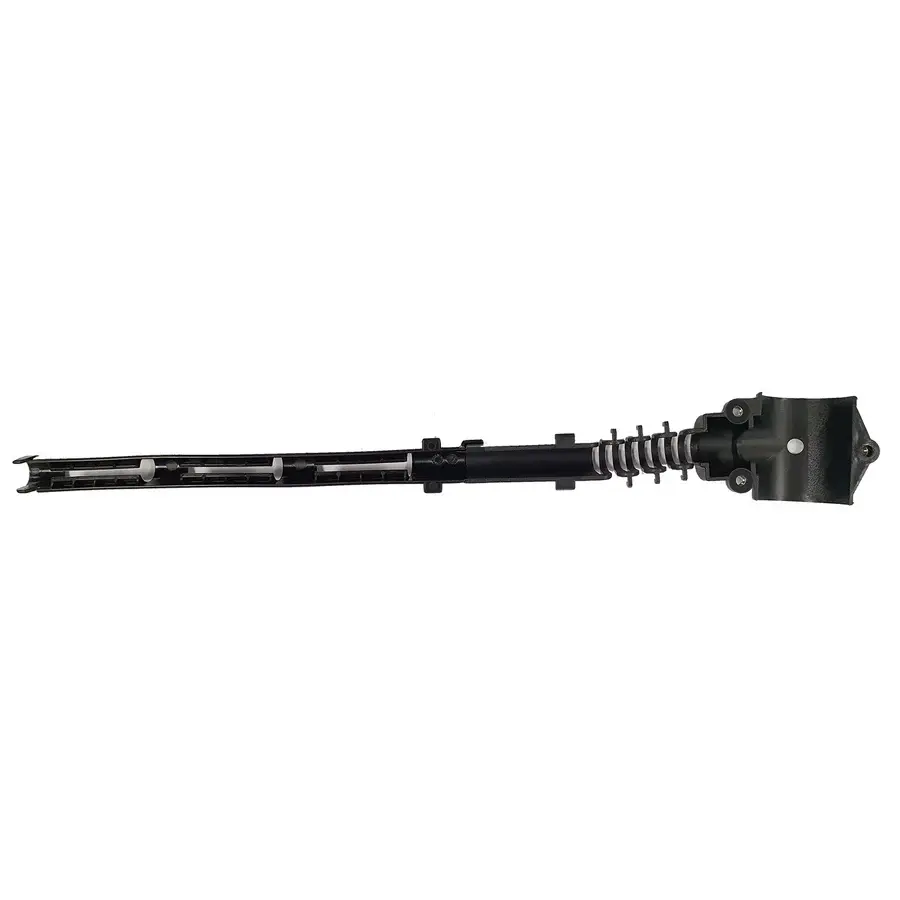

3. Important: Refer to the third product photo above for the specific alignment and snap-fit orientation of these new components.

Key Features

• Impact Resistant: Protects sensitive hoses from cow contact and mechanical arm movements.
• Flexible Durability: Made from a high-grade polymer that remains pliable in cold temperatures while resisting cracks.
• Easy Retrofit: Designed to fit perfectly onto existing Lely arm configurations.

Maintenance Tip: Checking for "Pinch Points"

When installing new Duplo Hose Covers, manually move the robot arm through its full range of motion. Ensure the covers do not catch on the frame or pinch the internal hoses at maximum extension. A properly installed cover should allow the hoses to "breathe" slightly while preventing them from rubbing against metal edges.
