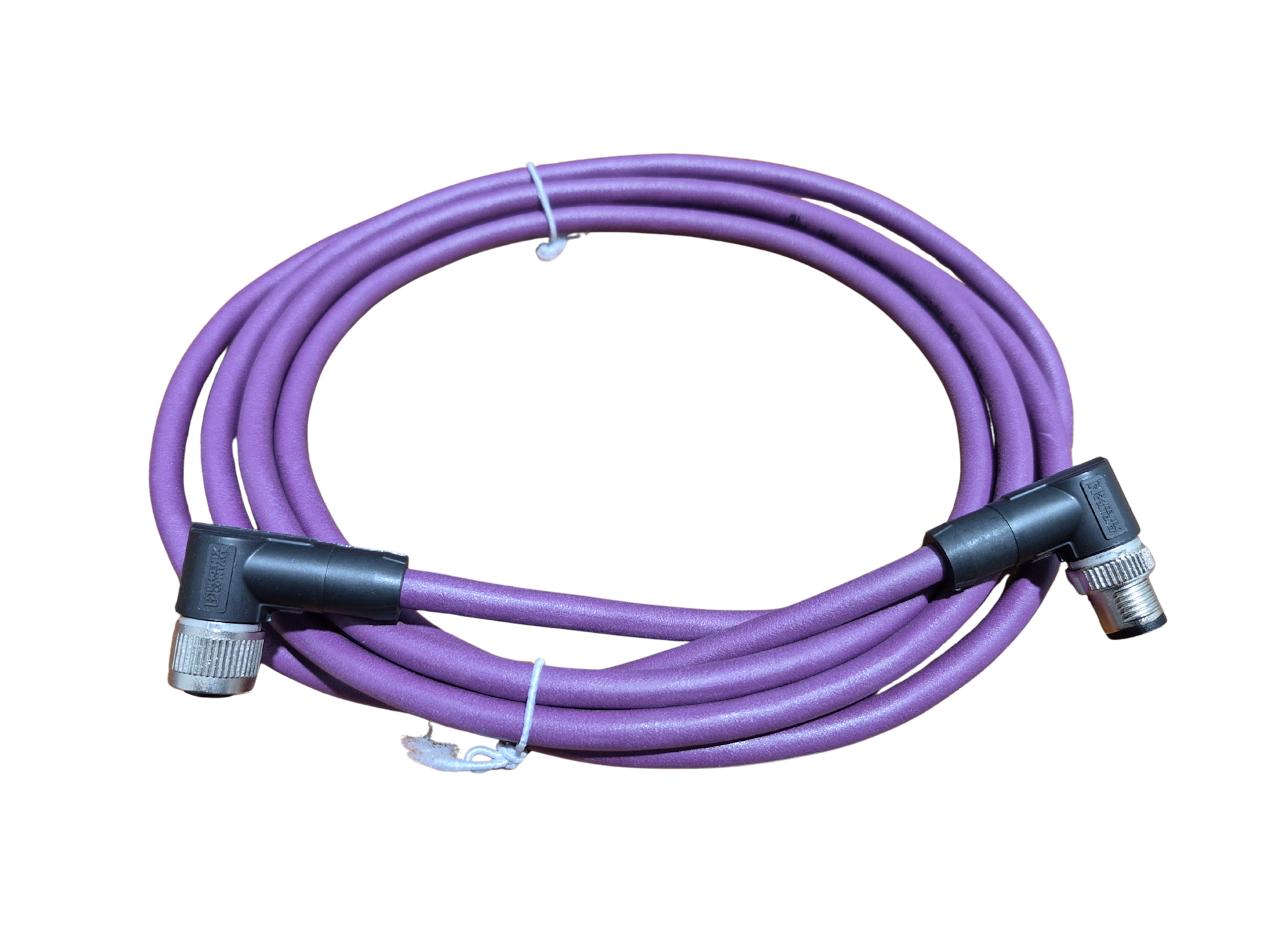

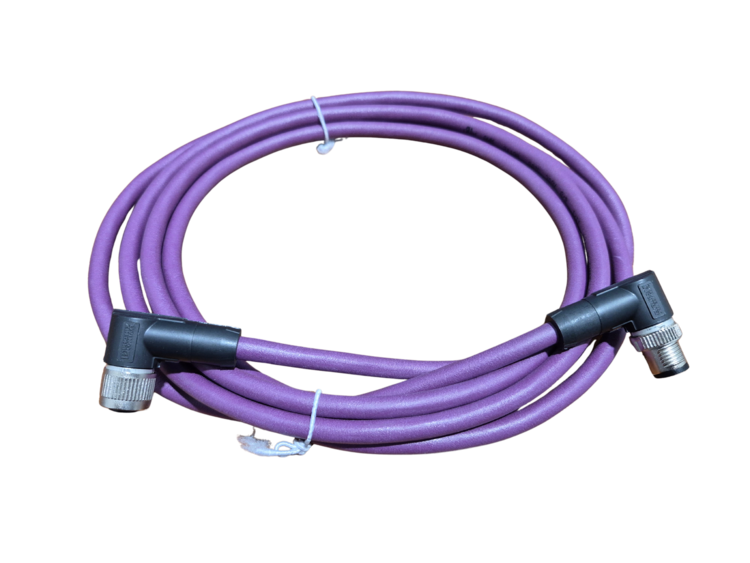

Cable laser TDS-2 A5

Cable Laser TDS-2 (Lely Astronaut A5)

The Cable Laser TDS-2 is a critical data and power link for the Teat Detection System (TDS) on the Lely Astronaut A5 milking robot. This specialized cable connects the TDS-2 laser unit—the "eyes" of the robot—to the central processing system, enabling the hybrid arm to identify and attach to teats with extreme precision.

System Role

In the Lely A5, the TDS-2 system combines laser focus with a wide-view camera. This cable ensures that the high-speed data from the laser is transmitted without interference, allowing the robot to:

• Instantly follow the cow's movements.
• Achieve faster and more accurate teat attachment.
• Maintain functionality even in the humid, demanding environment of the milking box.

Key Features

• High-Speed Data Transmission: Designed to handle the precise signals required for 3D teat mapping.
• A5 Hybrid Arm Compatibility: Engineered specifically for the motion profile of the A5's hybrid electrical/pneumatic arm.
• Robust Shielding: Protects against electromagnetic interference (EMI) from the robot's motors and external barn equipment.
• Environmental Seal: Features industrial-grade connectors designed to resist moisture, cleaning chemicals, and manure ingress.

Maintenance Insight

Because the laser cable is located on the moving robot arm, it is subject to constant flexing.

• Inspection: During your weekly maintenance (as part of cleaning the TDS-2 screen), check the cable jacket for any signs of wear, kinking, or tension.

Signal Errors: If the robot experiences "Teat Not Found" errors or "Laser Communication" alarms, the cable is often the first component to check for physical damage before replacing the more expensive laser unit.
